Precision Die-Casting

The design of precision die-casting molds is crucial for ensuring the quality and efficiency of casting production. Chi-Tai boasts a specialized team proficient in precision die-casting mold design, utilizing advanced 3D CAD software and mold flow analysis systems to produce accurate molds that align with customer specifications. Our core focus is to enhance production efficiency and implement effective project management to reduce mold development time. With a dedicated processing and mold maintenance team, and extensive software and hardware resources, we are committed to providing fast, high-quality, and competitive services to meet our customers' requirements.

Chi-Tai emphasizes the following critical aspects in the ranges of precision die-casting mold design, :

  • Material Selection and Thermal Management:
      • Material Selection: we use premium steel molds, such as H13 or higher grades to ensure the mold maintains excellent resistance to metal fatigue, continuous wear, and thermal stresses under high pressure and temperature, retaining precision over extended use.
      • Thermal Management: our engineering team carefully considers the effects of thermal stress from high-temperature metals during mold design during the mold design process. We optimize cooling system designs to achieve even temperature distribution, and thereby minimizing deformation and potential damage caused by thermal stress.
  • Runner and Vent System Design:
    • Runner Design: our runner systems ensure that liquid metal fills all mold cavities uniformly and efficiently. Through precise calculations of runner shape, size, and positioning using mold flow simulation software, we avoid issues like turbulence and cold shuts, and thereby improving casting quality.
    • Vent System: we design effective vent systems to quickly expel air from the mold cavity, preventing air pockets and enhancing the density and strength of the castings.
  • Mold Precision and Longevity:

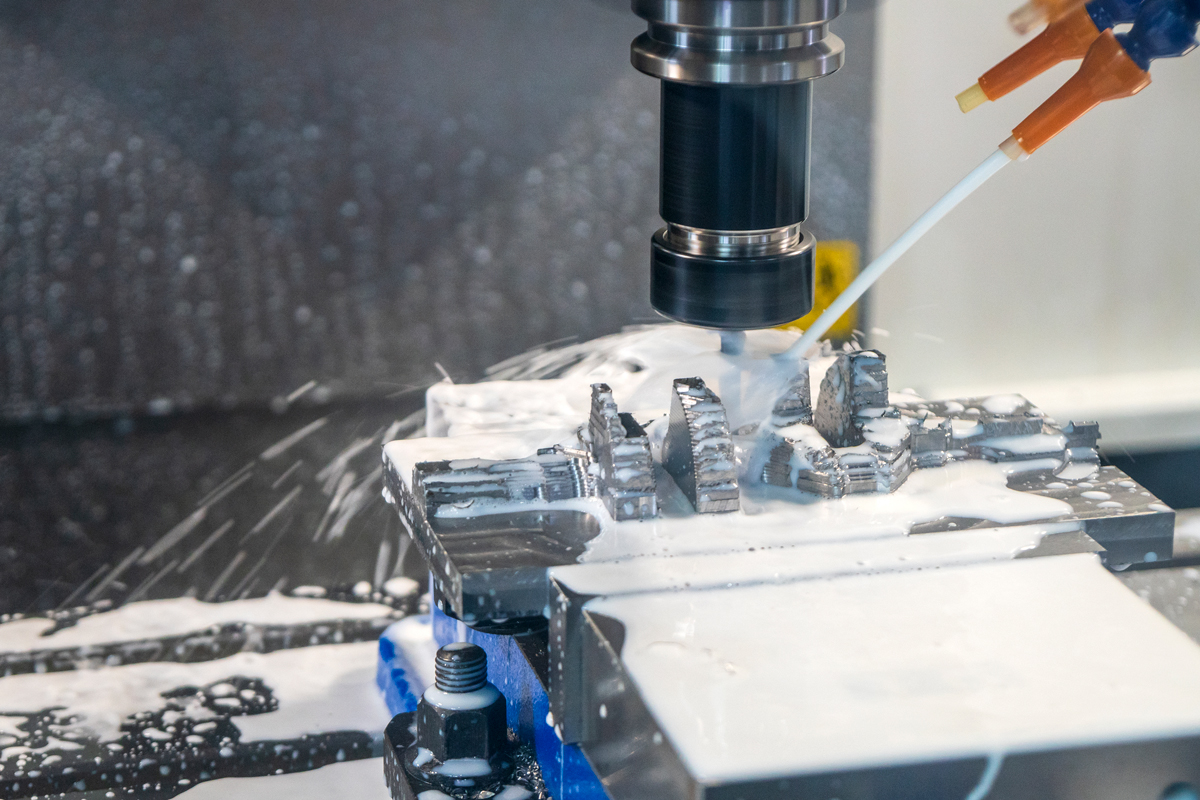

    • Mold Precision: we apply 3D CAD tools, such as PRO-E and SolidWorks directly into the CNC machining and EDM processes. We utilize coordinate measuring machines (CMM) and automated optical inspection systems to ensure mold accuracy during manufacturing and final inspection.
    • Mold Longevity: we employ various treatments to enhance mold durability, including stress relief, heat treatments, and surface treatments, such as nitriding and chrome plating. In addition, we regularly conduct carbon buildup removal and repairs to ensure long-term mold performance.

These design principles and operational practices have established Chi-Tai as a leader in the precision die-casting industry, being consistently dedicated to delivering superior products and services to our clients.
